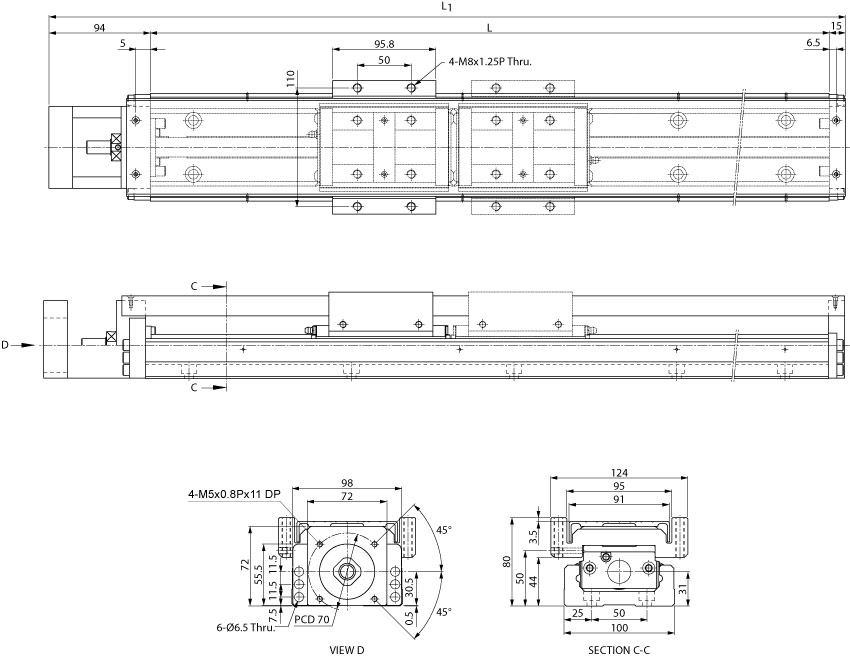

Note*: The max. stroke of B type is base on two carriage-nuts used in closed contact with each other.
Unit:mm | |||||||||
Rail Length L |
Overall Length L1 |
Max. Stroke | E |
n |
E1 | n1 | Weight(kg) | ||
A Type | B Type | A Type | B Type | ||||||
980 | 1089 | 828 | 699 | 40 | 7 | 90 | 5 | 19.90 | 21.62 |
1080 | 1189 | 928 | 799 | 15 | 8 | 40 | 6 | 21.63 | 23.35 |
1180 | 1289 | 1028 | 899 | 65 | 8 | 90 | 6 | 23.36 | 25.08 |
1280 | 1389 | 1128 | 999 | 40 | 9 | 40 | 7 | 25.09 | 26.81 |
1380 | 1489 | 1228 | 1099 | 15 | 10 | 90 | 7 | 26.82 | 28.54 |
KM55Cover Type(A,B Type)
Note*: The max. stroke of B type is base on two carriage-nuts used in closed contact with each other.
Unit:mm | |||||
Rail Length L |
Overall Length L1 |
Max. Stroke | Weight(kg) | ||
A Type | B Type | A Type | B Type | ||
980 | 1089 | 828 | 699 | 21.78 | 24.25 |
1080 | 1189 | 928 | 799 | 23.61 | 26.08 |
1180 | 1289 | 1028 | 899 | 25.44 | 27.91 |
1280 | 1389 | 1128 | 999 | 27.26 | 29.73 |
1380 | 1489 | 1228 | 1099 | 29.09 | 31.56 |
